GD&T stands for Geometric Dimensioning and Tolerancing, and if you’ve ever wondered why two perfectly good parts just don’t fit - or why inspection reports don’t match your expectations - then yes, this blog is for you.

GD&T can seem like a maze of symbols and feature control frames. But once you understand it, GD&T becomes the key to unlocking better design communication, higher manufacturing accuracy, and fewer product rejections.

Let’s break it down like you’d explain it to a teammate - simple, powerful, and packed with insights.

What is GD&T?

At its core, GD&T is the universal language of engineering drawings. Instead of relying on vague +/- tolerances, it uses symbols to communicate how much variation is allowed in a part’s geometry. It tells the machinist exactly what matters: the orientation, form, profile, and location of each feature.

GD&T replaces ambiguity with precision. And in high-stakes industries like aerospace, automotive, and defense, that difference can save thousands in rework costs. GD&T benefits include enhanced communication, improved reliability and flexibility

GD&T Basics You Must Know

GD&T uses a standardized set of 14 symbols to define tolerance types. These are grouped into five main categories:

1. Form: Straightness, Flatness, Circularity, Cylindricity
2. Profile: Profile of a Line, Profile of a Surface
3. Orientation: Perpendicularity, Angularity, Parallelism
4. Location: Position, Concentricity, Symmetry
5. Runout: Circular Runout, Total Runout

Each of these tells the manufacturer what’s critical to function—and what isn’t.

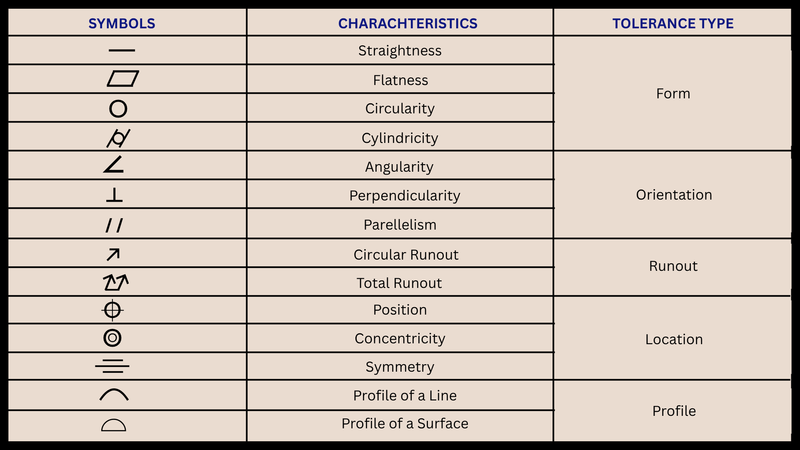

GD&T Symbols

Tolerances: MMC, LMC, RFS Explained

GD&T uses three tolerance modifiers to specify how much variation is allowed depending on the feature’s size:

1. MMC (Maximum Material Condition): Tightest fit; most material present.
2. LMC (Least Material Condition): Loosest fit; least material present.
3. RFS (Regardless of Feature Size): Tolerance applies no matter the size.

These aren't just theory—they directly affect how parts fit during assembly and inspection.

GD&T vs Traditional Dimensioning

Think of traditional dimensioning like texting in shorthand. It gets the job done, but it’s open to interpretation. GD&T is like formal grammar—less ambiguity, more precision.

For example, a hole dimensioned traditionally may not specify its tolerance zone orientation. But with GD&T, a position tolerance gives a clear cylindrical zone for the hole’s axis—critical for accurate fits.

Feature Control Frame – The Core of GD&T

This is the rectangular box you see attached to the drawing—it holds all the rules for that feature.

A feature control frame typically includes:

1. The GD&T symbol
2. Tolerance value
3. Datum references (A, B, C)

Example:

⌖ | 0.1 | A | B | C

This means the feature’s location can deviate within a cylindrical zone of 0.1 mm, oriented relative to datums A, B, and C.

Learning to interpret this box correctly is half the battle.

How to Read GD&T Drawings

When looking at a GD&T drawing:

1. Start by identifying the datums (usually labeled A, B, C)
2. Read feature control frames attached to each geometry
3. Understand how the tolerance zone is shaped (cylinder, plane, etc.)
4. Look for bonus tolerance—tolerances that increase with feature size

Pro Tip: Most software like CATIA, Creo, and SolidWorks has built-in GD&T interpretation tools. Use them while modeling to reinforce your understanding.

Applications of GD&T in Real-World Engineering

Where is GD&T actually used?

1. Automotive: Gearbox housings, engine blocks, brackets
2. Aerospace: Wing components, landing gear, turbine blades
3. Medical Devices: Implants, casings, surgical tools
4. Robotics & Automation: Shafts, bearing fits, sensors

It’s also essential for Design for Manufacturing (DFM) and Inspection Planning—helping teams reduce scrap rates and communicate across departments.

Common GD&T Mistakes

Avoid these if you're aiming for design accuracy:

1. Using symbols without defining a datum reference
2. Mixing up position tolerance with concentricity
3. Applying flatness where parallelism is required
4. Over-tolerancing—tight tolerances increase machining costs
5. Not testing flexibility using CAD simulation tools

Mistakes like these lead to rework, inspection failures, or worse—rejections at the customer’s end.

GD&T Interview Questions You Should Practice

Let’s face it—if you’re sitting for a design or CAE role, GD&T will come up. Here are 3 most-asked questions:

Q: What is the difference between position and concentricity?

A: Position controls location relative to datums; concentricity controls median axis alignment. Position is more commonly used due to ease of inspection.

Q: How does MMC help in part inspection?

A: MMC allows for bonus tolerance, helping ensure part fit even with slight variation—useful for functional assemblies.

Q: What’s the role of datum in GD&T?

A: Datums act as references for orientation and location of other features; essential for defining tolerance zones.

Learn GD&T for Free – Hands-On!

Want to practice GD&T with real-world projects?

🎓 Check out Skill-Lync’s YouTube Channel for:

✅Introduction to Geometric Dimensioning and Tolerancing

Earn free certificates on completion and build projects that matter. These videos are perfect for freshers and professionals who want real-world confidence in design.

Frequently Asked Questions (FAQs)

Q1: What is GD&T and why is it important?

GD&T is a system for defining engineering tolerances. It ensures that parts fit and function properly despite manufacturing variations.

Q2: Is GD&T used in all industries?

Yes, especially in sectors like automotive, aerospace, and medical devices where precision is critical.

Q3: How do I learn GD&T practically?

Start with Skill-Lync’s free YouTube tutorials. Then practice with CAD tools like SolidWorks or CATIA using GD&T callouts.

Q4: What’s the best GD&T symbol to start with?

Position tolerance. It’s the most used and essential for understanding location control.

Q5: Do freshers need to learn GD&T?

Absolutely. It’s one of the key skills recruiters expect for design and CAE-based roles.

How GD&T Affects Manufacturing and Quality Control

GD&T is not just for designers. It directly impacts how parts are manufactured and inspected. Here's how:

1. Manufacturing Precision: GD&T defines clear tolerance zones, reducing guesswork for machinists and CNC programmers. It allows better toolpath planning and reduces trial-and-error.
2. Quality Control (QC): Inspection teams use GD&T to create CMM (Coordinate Measuring Machine) programs. It helps them verify that parts meet specs using datums and feature control frames.
3. Cost Efficiency: By applying the right tolerances where needed (and not everywhere), GD&T helps optimize production costs without compromising functionality.
4. Vendor Communication: With standardized callouts, manufacturers across countries can interpret specs the same way—boosting global sourcing and reducing part mismatches.

Whether you're in a job shop or working with OEMs, understanding GD&T makes you a better bridge between design and manufacturing.

Top GD&T Tools in CAD Software

Most modern CAD tools now come with built-in GD&T functionality. Here are the best ones to explore in 2025:

1. SolidWorks MBD (Model-Based Definition): Lets you embed GD&T directly into 3D models, avoiding 2D drawings altogether. Great for digital manufacturing workflows.
2. CATIA Functional Tolerancing & Annotation (FTA): Used heavily in aerospace and automotive, this tool allows advanced tolerancing right inside CATIA V5/V6 environments.
3. Creo GD&T Advisor: Offers real-time validation and suggestions for correct symbol usage and stack-up logic.
4. AutoCAD Mechanical: Includes a full GD&T symbol library for creating technical drawings with proper tolerancing standards.

Learning to apply GD&T in these tools isn’t just about buttons—it teaches you how to think like a professional design engineer.

Final Thoughts

Mastering GD&T isn’t just about passing an interview or ticking a box. It’s about becoming a better engineer. It improves your drawings, improves how your parts function, and builds confidence when working with manufacturing teams, vendors, and inspectors.

So if you're serious about design, analysis, or product development—make GD&T your priority in 2025.
